WF-YL11-033 Brass Dome Impeller Flow Sight Indicator

Model No.: WF-YL11-033
Brand: TechWF | OEM Custom Logo Supported
Manufacturer: Wenzhou Weifeng Technology Co., Ltd.
Origin: Wenzhou, Zhejiang, China
Business Contact WhatsApp: +8618815068623
Official Website: www.alvifeng.com
Application Industries: Industrial Process | Chemical Engineering | Agricultural Irrigation | Offshore Marine Equipment

1. Premium Product Overview

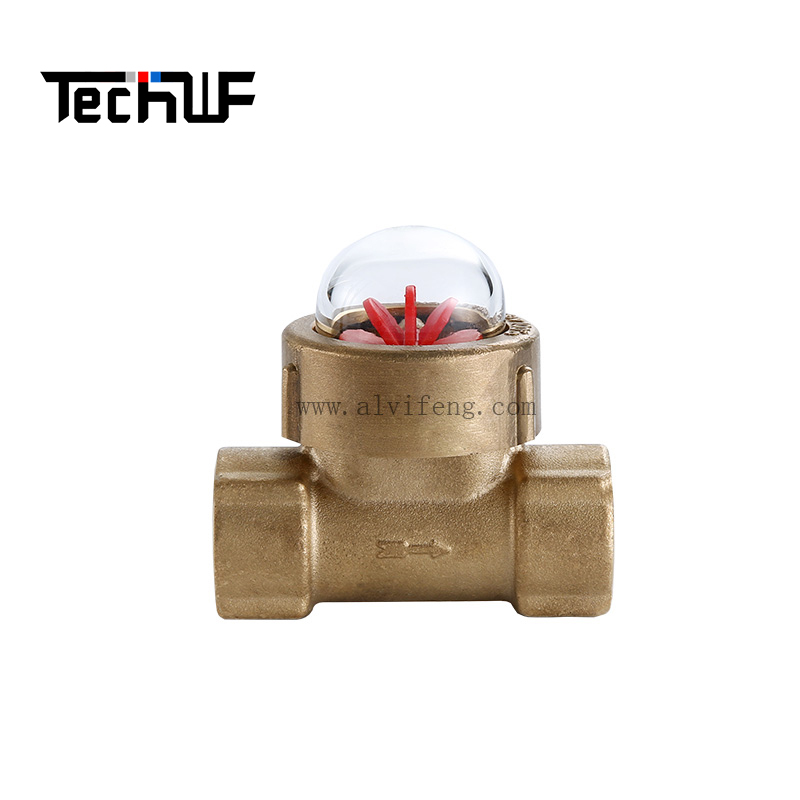

WF-YL11-033 dome type brass impeller flow sight indicator is a high-grade pipeline visual flow monitoring component engineered for heavy-duty industrial, chemical, agricultural and offshore marine working conditions. Forged integrated brass main body, hemispherical transparent dome sight window, built-in high-sensitivity red multi-blade impeller and bidirectional internal thread connection. It achieves real-time intuitive visualization of medium flow status, flow velocity and pipeline cut-off risk, effectively protecting pumps, reactors, irrigation facilities and offshore circulation systems from dry-running, cavitation and empty pipe damage. The product undergoes full pressure & corrosion aging testing, delivering stable long-cycle service in complex multi-scenario harsh working environments.

2. High-Grade Technical Specifications
- Body Material: High-density forged lead-free brass (anti-oxidation, anti-scale, seawater & chemical medium resistant)
- Connection Standard: BSP / NPT female internal thread, full range DN15-DN50
- Sight Window: High-strength polycarbonate hemispherical dome, impact-resistant, UV-resistant, transparent without distortion
- Sealing Assembly: EPDM/FKM fluororubber double-layer composite sealing ring, acid, alkali, salt water & oil resistant
- Indicator Core: Reinforced anti-corrosion red multi-blade impeller, ultra-low flow sensitive response
- Nominal Working Pressure: PN16 standard, PN25 reinforced marine version customizable
- Operating Temperature Spectrum: -30℃ ~ +150℃, adapt to extreme cold & high-temperature process pipelines
- Flow Structure: Full straight through full-bore design, zero flow resistance & pressure loss
- Marking: Cast integrated flow direction arrow, permanent wear-resistant identification

3. Core High-End Industrial Advantages
1. Integral forged high-density brass body, compact grain structure, excellent mechanical strength, anti-rust, anti-scaling, resistant to weak acid, weak alkali, brine, seawater and various industrial oil media, long service life without corrosion failure.
2. Hemispherical dome full-view sight glass, 270° ultra-wide viewing angle, no visual dead angle, clearly observe impeller rotation, medium impurities, foam and flow state in all installation directions.
3. Reinforced multi-blade anti-corrosion impeller, ultra-sensitive to micro flow, accurately identify low flow, cut-off, backflow risk, avoid equipment shutdown loss caused by pipeline abnormal flow.
4. Dual composite FKM/EPDM sealing system, excellent resistance to chemical corrosion, salt spray aging and high-low temperature alternating, zero leakage under long-term continuous heavy load operation.
5. Full-bore straight-through internal channel, no throttle protrusion, will not generate extra pressure drop, maintain original pipeline design flow efficiency, suitable for precision process flow control.
6. Universal internal thread two-way connection, bidirectional pipeline installation compatible, cast flow direction mark for rapid on-site construction identification, reduce engineering installation error rate.
7. Multi-scenario harsh environment adaptive design, pass salt spray, alternating cold & hot, long-term circulation aging test, reliable performance for industrial, chemical, agricultural and offshore marine long-cycle continuous operation.
8. Low maintenance industrial design, no vulnerable consumable parts, only regular simple cleaning of dome window, greatly reduce later operation and maintenance cost of engineering projects.

4. Global Multi-Industry High-End Application Scenarios
▌Heavy Industrial Process
Factory circulating cooling water, boiler auxiliary pipeline, central HVAC chilled water system, machine tool hydraulic oil circuit flow real-time monitoring, prevent pump dry grinding and equipment cavitation damage.
▌Chemical Engineering Industry
Weak acid & weak alkali liquid conveying pipeline, light chemical solvent circulation system, chemical intermediate transfer pipeline, visual monitoring to avoid pipeline blockage and material cut-off production halt.
▌Modern Precision Agriculture
Large farm irrigation water supply pipeline, greenhouse nutrient solution circulation system, drip irrigation & sprinkler flow inspection, guarantee uniform irrigation, avoid partial crop drought loss.
▌Offshore Marine Equipment
Ship cooling circulation pipeline, offshore platform fresh water & seawater auxiliary pipeline, marine aquaculture water circulation system, saltwater corrosion resistant design adapt to coastal & offshore high-salt humid environment.
▌Other Supporting Fields
Water treatment purification equipment, solar thermal circulation pipeline, fire protection water supply branch pipeline, food clean medium conveying pipeline.

5. Customized High-End Engineering Service
1. Material Upgrade: Marine anti-salt special brass, 304/316 stainless steel composite version available
2. Thread Customization: BSP, NPT, G, Rc and special non-standard thread size processing
3. Pressure Grade Customization: PN16 standard version, PN25 high-pressure marine reinforced version, PN40 ultra-high pressure engineering customized
4. Sealing Material Matching: EPDM for water medium, FKM fluororubber for chemical oil & solvent medium
5. Brand & Packaging Customization: Laser engraving customer LOGO, neutral export wooden case / carton engineering packaging, third-party test report support
6. Size Caliber Customization: DN15/DN20/DN25/DN32/DN40/DN50 and special large/small non-standard calibers

6. Strict Factory High-Standard Quality Control
All WF-YL11 series industrial sight indicators implement full-piece 100% pre-delivery inspection, covering hydraulic pressure burst test, sealing leakage test, salt spray corrosion aging test, impeller low-flow sensitivity test, high-low temperature alternating cycle test. Complete factory test reports and material certificates can be provided for engineering bidding, offshore marine project audit and chemical factory safety review.
